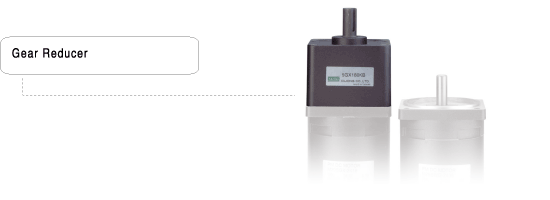

- GEAR REDUCER

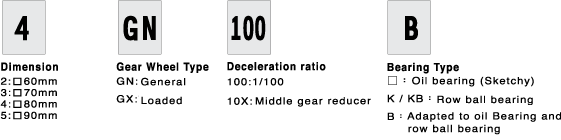

Index of Gear Reducer:
Reduction ratio and transmissiion efficiency
| Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 |
GN |
81% |
73% |
66% |
|||||||||||||||||
| GX |
81% |
73% |
66% |
59% |
||||||||||||||||
Product name |

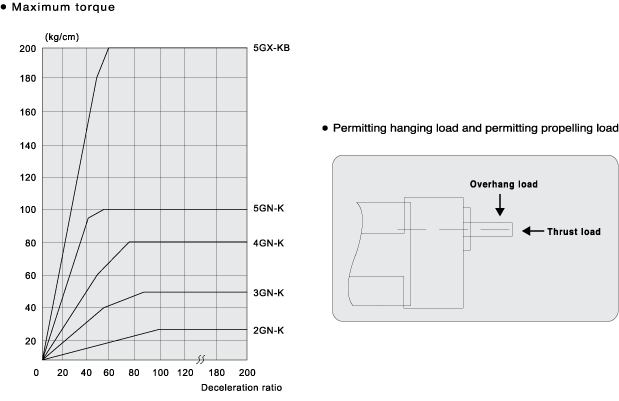

Maximum torque(kg.cm) |
Permitting hanging load (kg) |
Permitting propelling load(kg) |
|
10mm from the front shaft |
20mm from the front shaft |
|||
2GN2GN-K |
25 |
812 |
1218 |
3 |
3GN3GN-K |
50 |
1015 |
1525 |
4 |
4GN4GN-K |
80 |
1520 |
2530 |
5 |
5GN5GN-K |
100 |
30 |
45 |
10 |
5GX-KB |
200 |
40 |
60 |
15 |
