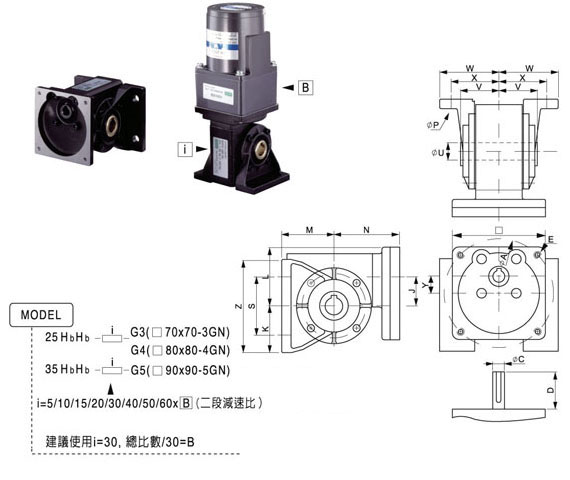

- 蝸輪減速機-25/35 HbHb G 系列
| 型號 | 入力軸側 | 出力軸 | ||||||||
| J | □ | ØA | ØC | D | E | KEY | Y | ØU | V | KEY |
| 25 | 70×70 | 82 | 10 | 32 | M5 | 4×4×25 | 15 | 15 | 33 | 5×5×66 |
| 80×80 | 94 | |||||||||
| 35 | 90×90 | 104 | 12 | 32 | M6 | 4×4×25 | 18 | 18 | 40 | 5×5×80 |
| 型號 | 固定座 | 外部 | 最大容許轉矩 | 重量 (kg) |
|||||||
| J | ØP | S | W | X | Z | K | L | M | N | ||
| 25 | 9 | 50 | 51 | 41 | 80 | 45 | 45 | 45 | 56.5 | 150 | 1.1 |
| 50 | |||||||||||
| 35 | 9 | 60 | 58 | 48 | 100 | 50 | 62 | 50 | 64.5 | 300 | 1.9 |
