直流馬達
直流馬達索引
10型號 |
S法蘭面 |
GN軸形狀 |
F(特製器)附件 |
180電壓(Vdc) |
18轉速(RPM) |
05:2GN□60mm |
R:圓形S:方形 |
GN:螺旋齒輪GX:螺旋齒輪WG:鍵槽式圓軸P:圓軸 |
F:風扇B2:後軸心 |
12:1224:2490:90180:180 |
18:180032:320036:3600 |

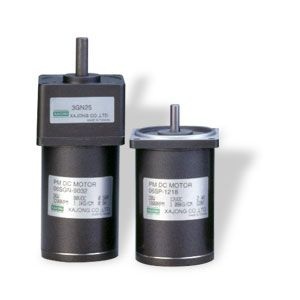

06:3GN□70mm |
|||||

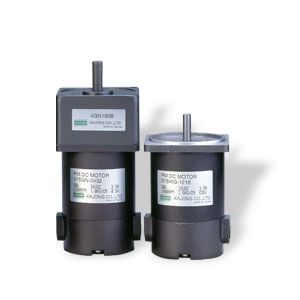

07:4GN□80mm |
|||||

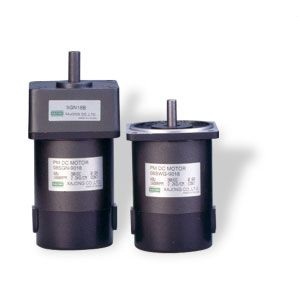

08:5GN□90mm |
|||||

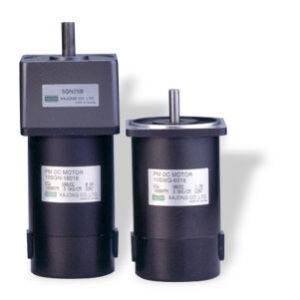

10:5GN□90mm |
|||||

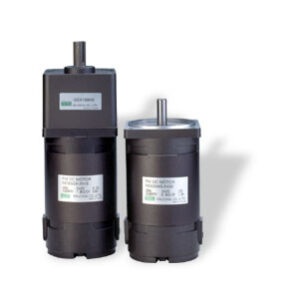

M29:5GX□90mm |
|||||

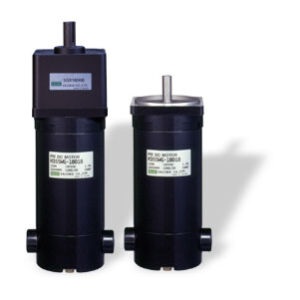

M35:5GX□90mm |
|||||

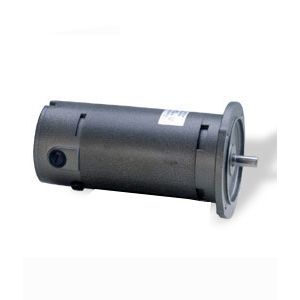

M31:IEC71 |
直流馬達額定規格
型號 |
額定 |
||||||
VOLTAGE(vdc) |
AMPS(A) |
SPEED(RPM) |
OUTPUT(W) |
TORQUE(kg-cm) |
RATING(min) |
WEIGHT(kg) |
|
|
12 |
1.2 |
1800 |
10 |
0.7 |
CONT |
0.8 |
24 |
0.6 |
||||||
90 |
0.17 |
||||||
12 |
2.4 |
3200 |
20 |
0.75 |
30 min |
0.8 |
|
24 |
1.2 |
||||||
90 |
0.34 |
||||||
|
12 |
2.4 |
1800 |
20 |
1.08 |
CONT |
1.0 |
24 |
1.2 |
||||||
90 |
0.32 |
||||||
12 |
4.2 |
3200 |
36 |
1.1 |
30 min |
1.0 |
|
24 |
2.1 |
||||||
90 |
0.56 |
||||||
|
12 |
3.5 |
1800 |
30 |
1.62 |
CONT |
1.3 |
24 |
1.8 |
||||||
90 |
0.5 |
||||||
12 |
5.2 |
3200 |
50 |
1.83 |
30 min |
1.3 |
|
24 |
2.6 |
||||||
90 |
0.7 |
||||||
|
12 |
4.4 |
1800 |
40 |
2.2 |
CONT |
1.7 |
24 |
2.2 |
||||||
90 |
0.6 |
||||||
12 |
8 |
3200 |
70 |
2.1 |
30 min |
1.7 |
|
24 |
4 |
||||||
90 |
1.1 |
||||||
|
12 |
9 |
1800 |
65 |
3.5 |
CONT |
2.2 |
24 |
4.5 |
||||||
90 |
1.2 |
||||||
180 |
0.6 |
||||||
12 |
14 |
3200 |
120 |
3.66 |
30 min |
2.3 |
|
24 |
6.8 |
||||||
90 |
1.8 |
||||||
180 |
0.9 |
||||||
|
12 |
13 |
1800 |
100 |
7.0 |
CONT |
3.4 |
24 |
6.5 |
||||||
90 |
1.7 |
||||||
180 |
0.85 |
||||||
12 |
24 |
3600 |
200 |
6.5 |
30 min |
3.5 |
|
24 |
12 |
||||||
90 |
3.2 |
||||||
180 |
1.6 |
||||||
|
12 |
16 |
1800 |
150 |
10 |
CONT |
4.3 |
24 |
8 |
||||||
90 |
2.4 |
||||||
180 |
1.2 |
||||||
24 |
15 |
3600 |
300 |
9.6 |
30 min |
4.3 |
|
90 |
4.5 |
||||||
180 |
2.3 |
||||||
|
90 |
3.2 |
1800 |
200 |
16.2 |
CONT |
8.3 |
180 |
1.6 |
||||||
90 |
6.4 |
3600 |
400 |
16.2 |
30 min |
8.4 |
|
180 |
3.2 |
||||||
