  General Specification
Type Input
Vac 50/60 Hz		 Output
Vdc		 Tension Power Loading(W) Appearance Weight
(g)		 Dust Cover
10 20 30 40 65 100
c 110 0-90 T A B B1 C D E B：Box 265 ○
O：Open 220 ×

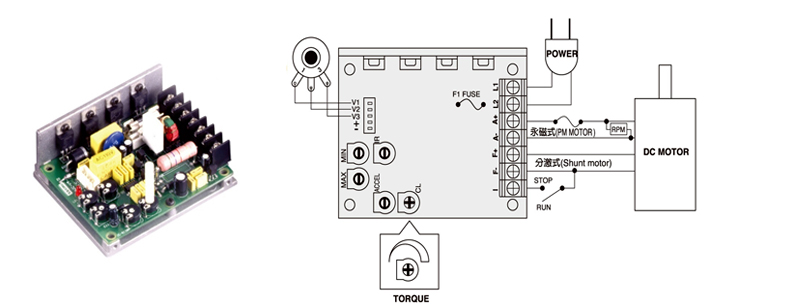

Applied Property :

  • When I、F- control the ON/OFF, the voltage output by A+, A- will be cut off immediately. Once the control has been stopped working for a long time, please turn off the power.
  • The voltage (0~9VDC) of speed control can replace potential counter and control. Please connected across V2(+) and F(-).
  • Please install signal isolator, when it controlled by voltage, it will prevent the interference of potential difference.
  • When it is controlled by voltage, MAX and MIN don’t work.
  • When it is controlled by analogy voltage, the V2+ must be obstructed. It can have the effect of decel that less than 7 seconds in maximum.
  • When you need 1/2 V of shunt motor, please connected across L1 and F+.
  • When you need control forward and reverse, please install FR control.

Setting of Property Adjustment :

  • MIN (Minimum rotation rate): 30% CL (Electric Current limitation/torque):100%
  • MAX (Maximum rotation rate): 70% ACCEL (Acceleration): 50%
  • IR (Load compensation): 0%
  • MIN-minimum rotation rate, MAX-maximum rotation rate, IR-0V, CL-1/2 load, ACCEL-2seconds.
  • CL-modifying tension to meet the controlling demands.
  • IR-When it is fully loaded, it compensate to make full use of tension disturbance.

Range Property Adjustment :

  • Electrical current limitation/range of twisting force (%fully load)........................0-50
  • Accelerating time (0~fully load) (second)....................................................0.5-4.0
  • Adjustment range of minimum rotation rate (%)..............................................0-30
  • Adjustment range of maximum rotation rate (%)..........................................50-150
  • Adjustment range of load compensation (V).........................................................0
  • Range of rotation rate (ratio).........................................................................10:1
  • The highest permission of fully rotation ambient temperature (°C°/F).......42/113
  • The setting stated above cannot be modified by unauthorized person.
