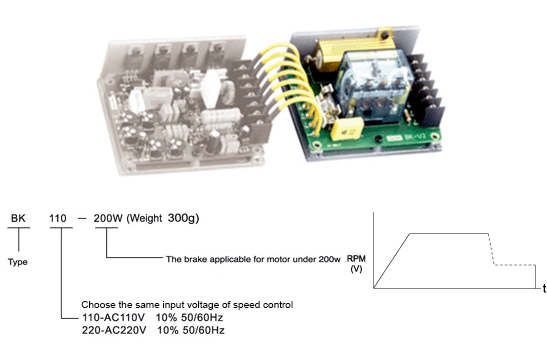

Index of Active Brake

  • The active brake need to match up the secondary side of type B or type C control.
  • It’s input voltage must be same of type B or type C control.
  • Fuse is according to the motor rated ampere.

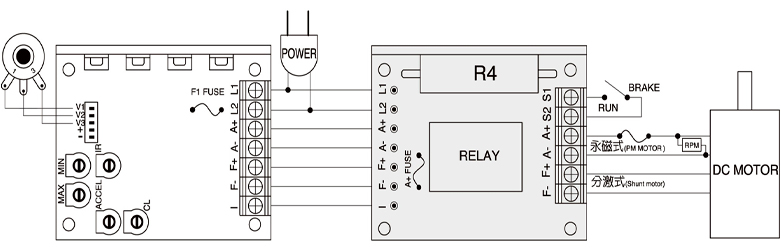

  • When open circuit is at S1 and S2, motor stops rotating by dynamic brake. After stopping rotating, motor is back to the free condition. When closed circuit is at S1 and S2, motor starts to rotate.
  • Speed permitting 1RPM, movement frequency 20 per min specially precise brake that can adapted to the change of R4 electric resistance.
  • When being loaded with high inertia, please decelerate the speed control and the brake.
  • For control forward and reverse, please choose the FR control.
