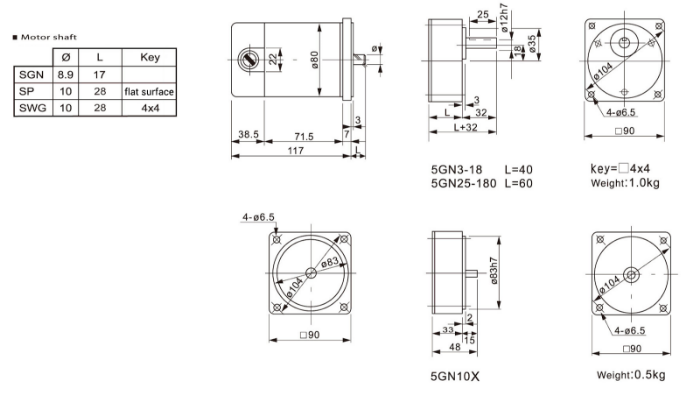

08 SP/SWG/SGN General Specification of Direct Current Motor
| Type | General Specification | ||||||
| VOLTAGE (vdc) |
AMPS (A) |
SPEED (RPM) |
OUTPUT (W) |
TORQUE (kg-cm) |
RATING (min) |
WEIGHT (kg) |
|
| 08 | 12 | 4.4 | 1800 | 40 | 2.2 | CONT | 1.7 |
| 24 | 2.2 | ||||||
| 90 | 0.6 | ||||||
| 12 | 8 | 3200 | 70 | 2.1 | 30 min | 1.7 | |
| 24 | 4 | ||||||
| 90 | 1.1 | ||||||
